銳星微國產RS304兼容CDCV304|5PB1104|CY2304|PI6CV304
- 參數一：1.8-3.3V
參數二：4 output
參數三：-40-85度

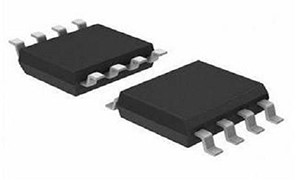

參數四：SOP8/MSOP8/TSSOP8/DFN8
銳星微國產RS304兼容CDCV304|5PB1104|CY2304|PI6CV304
一、RS304兼容CDCV304|5PB1104 產品特性：
? Operating Frequency: 0MHz~200 MHz
? Low noise:<50fsrms
? low skew: < 50ps
? Fast rise/fall time: 1.0ns typ.
? Propagation delay: 2.5ns typ.
? Industrial temperature (–40°C to 85°C)
? 3.3V/2.5V/1.8V power supply
? Packaging (Pb-free & Green available) Applications
? 33 MHz PCI-to- 133 MHz PCIX controllers
? 80 MHz for 10/100 Mbps Ethernet
? 125 MHz for Gigabit networking
? 155.520 MHz for Optical OC3/SDH/SONET
? Package:SOP8/MSOP8/TSSOP8/DFN8
二、RS304兼容CDCV304|5PB1104 性能
銳星微 RS304 are low-skew, low- noise, high speed clock buffers and are ideal for computing, networking, and communication applications.
Application examples include PCI(X) clock buffers in servers and workstations,
PCI(X) Storage Area Network (SAN), and RAID controllers.
They are used for networking and communications applications requiring 80 MHz for 10/100 Mbps Ethernet and 125 MHz
for Gigabit networking clocks.
To reduce EMI emission and power consumption, all outputs can be disabled to Low-state by asserting a low signal to the
OE (Output Enable) pin.
RS304 output impedance is 25-ohms.
