CDCLVC11xx 3.3-V and 2.5-V LVCMOS High-Performance Clock Buffer Family
一、CDCLVC1104時鐘clock buffer產品特點：
1• High-Performance 1:2, 1:3, 1:4, 1:6, 1:8, 1:10, 1:12 LVCMOS Clock Buffer Family
• Very Low Pin-to-Pin Skew < 50 ps • Very Low Additive Jitter < 100 fs
• Supply Voltage: 3.3 V or 2.5 V
• fmax = 250 MHz for 3.3 V fmax = 180 MHz for 2.5 V
• Operating Temperature Range: –40°C to 85°C
• Available in 8-, 14-, 16-, 20-, 24-Pin TSSOP Package (All Pin-Compatible)
二、CDCLVC1104時鐘clock buffer產品就用
Applications General-Purpose Communication, Industrial, and Consumer Applications
三、CDCLVC1104時鐘clock buffer特性

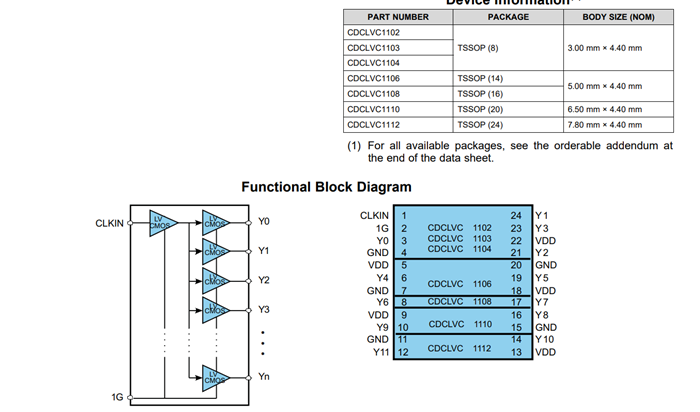

Description The CDCLVC11xx is a modular, high-performance, low-skew, general-purpose clock buffer family from Texas
Instruments.The entire family is designed with a modular approach in mind. It is intended to round up TI's series of LVCMOS
clock generators.
Seven different fan-out variations, 1:2 to 1:12, are available. All of the devices are pin-compatible to each other for easy
handling.
All family members share the same high performing characteristics such as low additive jitter, low skew, and wide operating
temperature range.
The CDCLVC11xx supports an asynchronous output enable control (1G) which switches the outputs into a low state when
1G is low.
The CDCLVC11xx family operates in a 2.5-V and 3.3-V environment and are characterized for operation from –40°C to 85°C.
